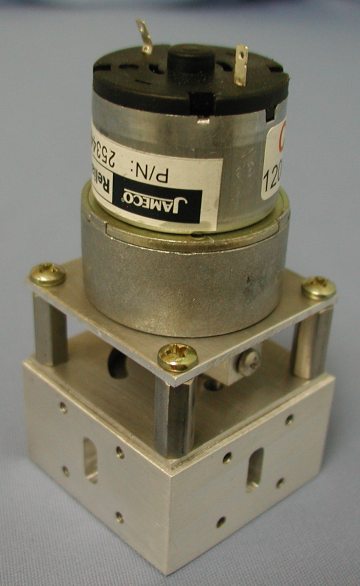

Waveguide Switch

As the Amateur Radio community moves into higher bands, availability of critical parts becomes more difficult. Often, the only items to be found for a reasonable price are parts stripped from surplus or scrapped out equipment.

Event Horizons is pleased to introduce the first of a line of products that are designed from the ground up to be economical and to have the reliability and performance demanded by hobbyists.




EH95305B
Operating Voltage:12V DC
Operating Current:120mA
RF Connection:WR-42 (RG53/U) (IEC R220)
Operating Frequency:24.192GHz
Insertion Loss:< 0.2dB
Isolation:> 60dB
VSWR:< 1.2:1
Switching Time:< 200mS


Available for purchase immediately from stock.
$275 each in singles

(Discounts available for quantity purchases)

Click here to order this product from our online store.
(Government or Corporate Purchase Orders welcome)

PDF containing the details and specifications of the 24GHz (WR-42) waveguide switch.
EH95305_DataSheet.pdf
